Product Features：
A series of electronic tensioner with two adjustable tension value, through the external input signal arbitrarily switch, and can liquid crystal display current value, easy to adjust. Suitable for wire diameter Φ0.02-Φ0.45mm specifications of the wire around the system.
A series of electronic tensioner

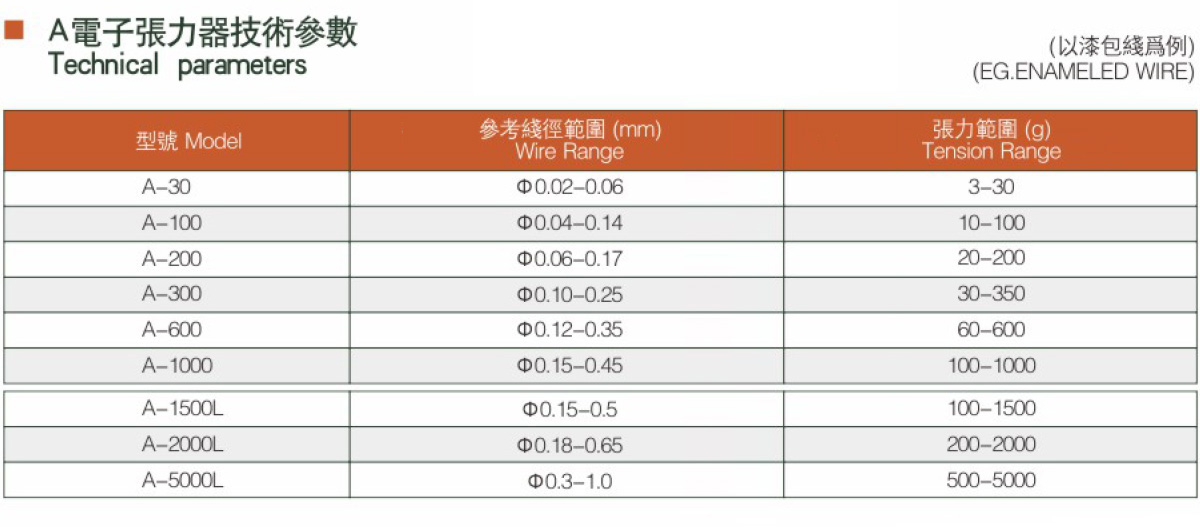

| 型号(Model) | 使用线径范围mm(Use the wire diameter range) | 张力值g,f(Tension value) |
| A-30 | 0.02-0.06 | 3-30 |
| A-100 | 0.04-0.12 | 10-100 |
| A-200 | 0.06-0.16 | 20-200 |
| A-600 | 0.12-0.35 | 60-600 |
| A-1000 | 0.15-0.45 | 100-1000 |
Display current value, easy to view;
According to "the greater the current the greater the tension, the smaller the current the smaller the tension," the working principle, you can adjust the current setting knob to change the tension. Two setting knobs can set two independent adjustable tension, switch with external signal control, and use "set 2 to adjust / adjust" button to assist in viewing current value;
Flexible adjustable tension spring fixed block can easily adjust the size of anti-tension;
Wool felt can filter the enameled wire impurities, and through the wool felt adjustment knob to adjust the degree of elasticity of enameled wire to ensure that the line is stable, do not swing;
The plug-in anti-tension component is easy to maintain;
Plug-in tension bar and spring replacement easy to fully meet customer needs;
Built-in disconnection position detection switch, safe and reliable.
