Note:
1. Normally use the tension spring hole 1, when the diameter is smaller, the required tension is small, such as the use of the minimum tension spring tension is still too large, you can choose to pull the spring hole 2 (this situation only applies to SET -100).
2.SET-1000 and above the model and the figure above the structure of the difference, for more information, to my company to obtain a detailed product brochures.

Precautions:

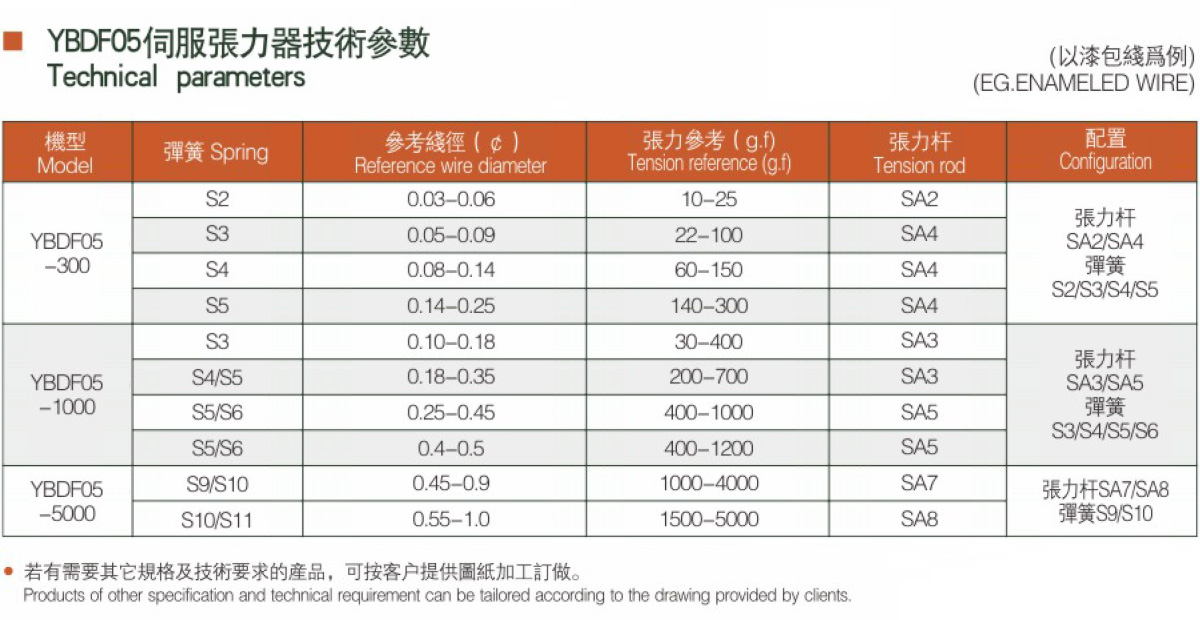

Please select the tension bar and tension spring for the tension value.
Do not touch the tension lever in the working condition; do not touch the tension sensor wheel, so as not to damage the tension sensor, affect the actual display of tension accuracy (for LED display models).
To prevent the tensioner from falling, and to avoid damage caused by a strong impact.
Winding speed should not exceed 5 m / s; as far as possible in the winding machine start to set a certain acceleration time or set a few laps slow start (start speed should not exceed 1 m / s).
Enameled wire must be strictly in accordance with the instructions on the dotted line path, followed by the relevant parts of the tensioner.
Enameled wire through the wool felt folder, you should pull the blanket, grip the enameled wire, dust can also be used to clamp the enameled wire and then press the blanket, which can prevent the enameled wire and screw friction and avoid frequent changes in blankets. Can be adjusted by the wool felt knob the safety of the whole felt, the general adjustment for the enameled wire safety tension of about 5%.
Enameled wire through the anti-jumper and over the wheel, you must check whether it is hung on the various guide wheel, to ensure that the guide wheel can work in the normal rotation without being stuck.
Tension wheel can not have oil, or affect the normal use, such as sticky oil, available cotton thread dipped in anhydrous alcohol, pull back and forth in the tension wheel groove to clean O-ring grease.
According to the use of the situation, regularly clean the tensioner and replace the wool felt to ensure that the normal work of the tension.
